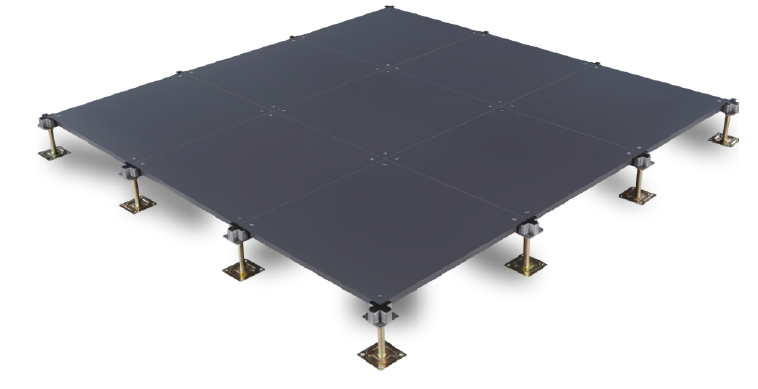

AERON T60

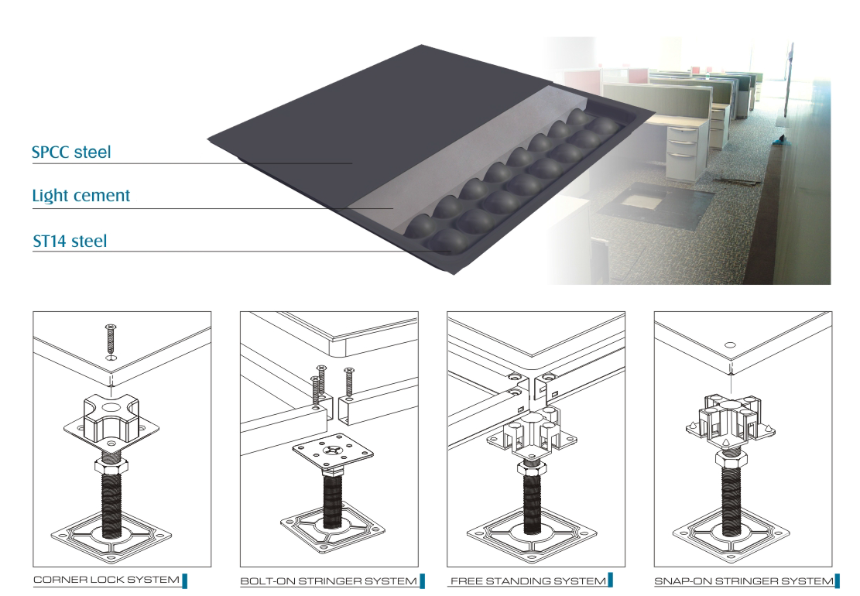

The panel is mate of steel plate , top to be SPCC material, bottom to be ST14 material, after pan formed  and joined together by resistance welding , the panel is coated with epoxy paint , then infilled with light cement.

Size

600mm x 600mm x 35 mm

Feature

Embossment structural.

Enhance the concentrated load capability.

Structure

-Screw down design supports the system effectively and makes the installation easily and stable.

-The load is transferred directly onto the center of pedestal column.

-Different types of understructures are available for install OA panel system.
