Access Floor are fabricated with die-cut flat top sheet and die-formed and stiffened bottom pan formed from cold-rolled steel sheet joined together by resistance welding to form an enclosed assembly , with metal surfaces protected against corrosion by manufacturer's standard factory-applied finish. Fully grout internal spaces of completed units with manufacturer's standard cementitious fill . This type panel is widely used in Korea , Japan and China with only 500x 500mm.

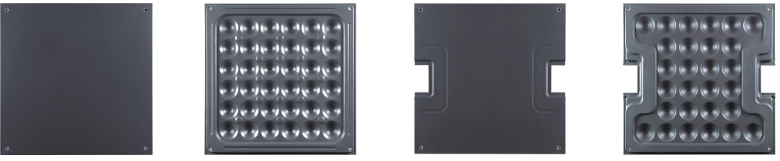

AT50 OA panel is made of steel plate, top to be SPCC material, bottom to be ST14 material , after pan formed and joined together by resistance welding, the panel is coated with epoxy paint , the infilled with light cement .
Size
500mm x 500mm
Feature
-All Steel Structure , nice loading capacity
-Excellent fire resistance ability
-Good dimension accuracy, panel can be interchangeable.

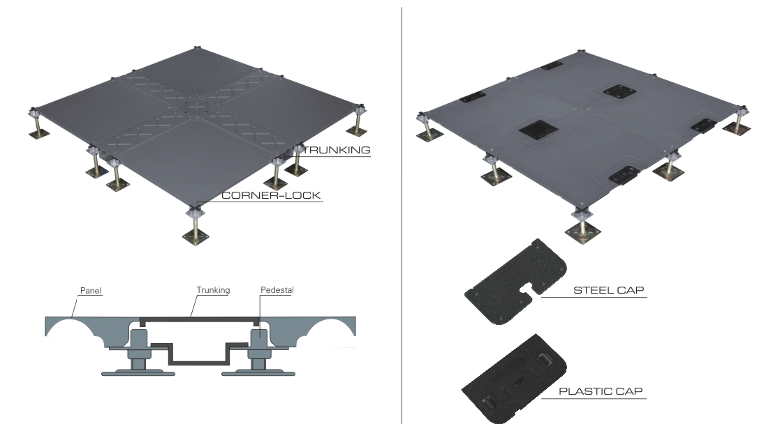

Wire Trunking System
A workstation can be easily and quickly relocated with cable management without disruption. Convenient for connecting wire at any point without cutting floor. Suitable for all kinds of plugs socket terminals. Adjustable wire- connected location .

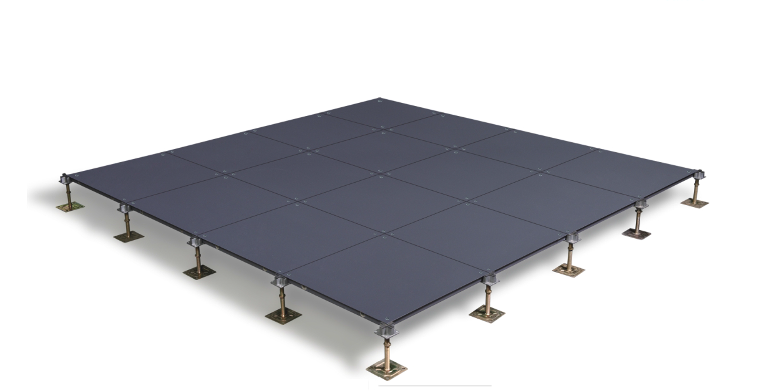

OA access floor system effectively reduces energy cost and improves inside air quality , makes it to be green office environment .
